Municipal
extraQt® process
extraQt®: That means an extra amount of Q in an extra short time t. The quick water flush for light cases in drinking water distribution.
The full cleaning power of our comprex® process is not required everywhere. In lighter cases of pipe network maintenance or as a maintenance measure of thoroughly cleaned networks, our water suction flushing extraQt® is the appropriate solution: for example, for rust water, easily mobilized corrosion films and deposits at flow velocities of 0.5 to 1.5 m/s. It is also suitable for use as a flushing agent in accordance with DVGW Code of Practice W 291 for the discharge of soft deposits and light contamination at flow velocities of 2 to 3 m/s.
Municipal
ExtraQt® process
ExtraQt®: Extra amount of Q in extra short time t. The quick water flush for light cases in drinking water distribution.
The full cleaning power of our comprex® process is not required everywhere. In lighter cases of pipe network maintenance or as a maintenance measure for thoroughly cleaned networks, our ExtraQt® water suction flushing system is the appropriate solution: for example, for the removal of rust water, easily mobilized corrosion films and deposits at flow velocities of 0.5 to 1.5 m/s or as a flushing system in accordance with DVGW Worksheet W 291 for the removal of soft deposits and light soiling at flow velocities of 2 to 3 m/s.
Exciting effect
This is how our extraQt® process works

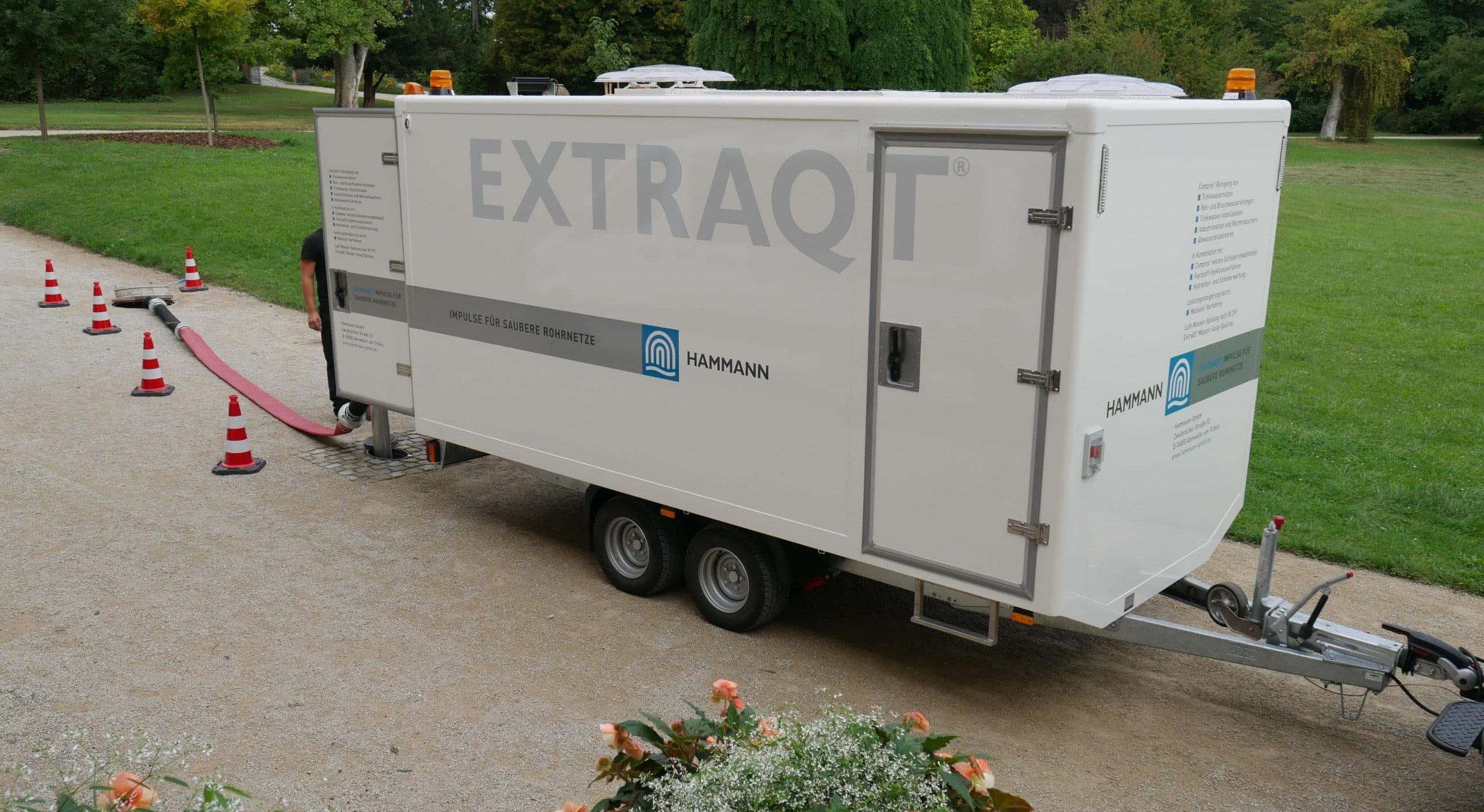

The extraQt® process is based on the effect of the targeted build-up of the so-called drag or wall shear stress of the moving water flow and its acceleration. This is achieved by using an effective suction pump at the outlet hydrant that is variable over a wide range of capacities. Due to the associated increase in the water withdrawal volume, the drag stress increases dynamically and thus develops its release force. Corrosion films and deposits such as iron-III compounds are reliably and quickly removed.
Optimally Calculated
Of course, with extraQt®, our water-suction flushing system, all usable parameters are also used for the online calculation of the optimum drag stress and control of the stress peaks: nominal pipe size and material, topographical course of the pipe and length of the flushing section. And, of course, everything is precisely documented for you.
Extra large rinsing areas
Depending on local conditions, we can process up to 1.5 km of flushing section for DN 80 to 100, and up to 5 km in length for DN 125 and above. Our technology currently makes it possible to flush nominal diameters up to DN 300, and in some cases even up to DN 400, with extraQt®. Success is determined by factors such as hydraulic conditions, possible withdrawal quantities, topography and network conditions. In local networks, we can provide daily services from 5 to 8 km.
You can profit from this
The advantages of ExtraQt®
- High daily output (5-8 km) fast work progress
- Effective discharge of the easily mobilized corrosion films/deposits
- Required drag voltage is demonstrably achieved
- No damage to surface layers
- Reduced water consumption due to acceleration effects, only approx. 1.5 times the line capacity
- No rework such as venting required
- Comprehensive documentation through parameter recording and digital photos
- Only short-term interruption of supply and limited impact on consumers
In addition to extraQt® cleaning, we also offer a condition-based network evaluation, which enables us to give you a very simple overview of the condition of your drinking water networks.
Why should you choose our process?
With extraQt® a high daily output is achieved -. with low rinsing water consumption and high economic efficiency.
